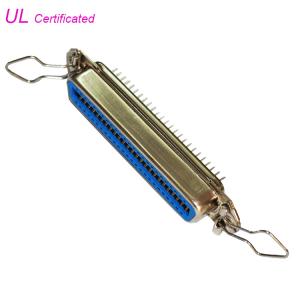

36Pin 50Pin Female Solder Pin Centronics Connector With Spring Latch

Name: 36Pin 50Pin Female Solder Pin Centronics Connector With Spring Latch
Brand: FUYCONN
Price: 1 USD

Wholesale 36Pin 50Pin Female Solder Pin Centronics Connector With Spring Latch from china suppliers

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUY57084

MOQ : 10pcs

Price : Negotiable

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Product Name : Centronic PCB Connector

Product Line : 57 Series Connector

Pitch : 2.16mm

Color : Black or Blue

Number of Terminal : 14 24 36 50 pin

Gender : Female

Contact Material : Brass

Insulation Material : PBT

Gold plating : 1U", 3U", 5U" ,10U", 15U", 30U"

PCB Mounting : Spring Latch

Contact Now

14P 24P 36P 50P Female Solder Pin Centronics Connector With PBT Insulator Material

57RC DDK easy type Solder Contacts PBT Insulator centronix connector Female Type

This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

36Pin 50Pin Female Solder Pin Centronics Connector With Spring Latch

Detail Description

Type: Centronic Solder Connector
Gender: Female
Product Category: Centronic connector
Product Line: Champ Connector
Number of Terminal: 14 24 36 50 pin
Connector Style:Receptacle
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option:Bail Clip

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics Solder Connector
Product Line:	Champ Connector
Gender:	Female
Connector Style:	Receptacle
Certerline :	2.16mm(0.85in)
Number of Position:	14 24 36 50 pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	Flat
Mating connector lock:	Spring Latches

Materials

Contact Material:	Brass
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
